Monitorrs Security 5 MPix AHD kamerový set dome 4 kanálový
Kód: 4112Súvisiaci tovar
Podrobný popis
Ostrejší a jasnejší obraz za každých okolností
Kamerové systémy značky Monitorrs security umožňujú online náhľad a prehrávanie pomocou aplikácií pre mobil, tablet aj PC bezplatne a bez nutnosti statickej IP adresy.
Kovové, vodotesné antivandal pouzdro
Obsah balení: 4 x BNC Kábel po 18 m 1 x Disk podľa výberu |
Videonávod pre aplikáciu do mobilu a tabletu (video obsahuje titulky)

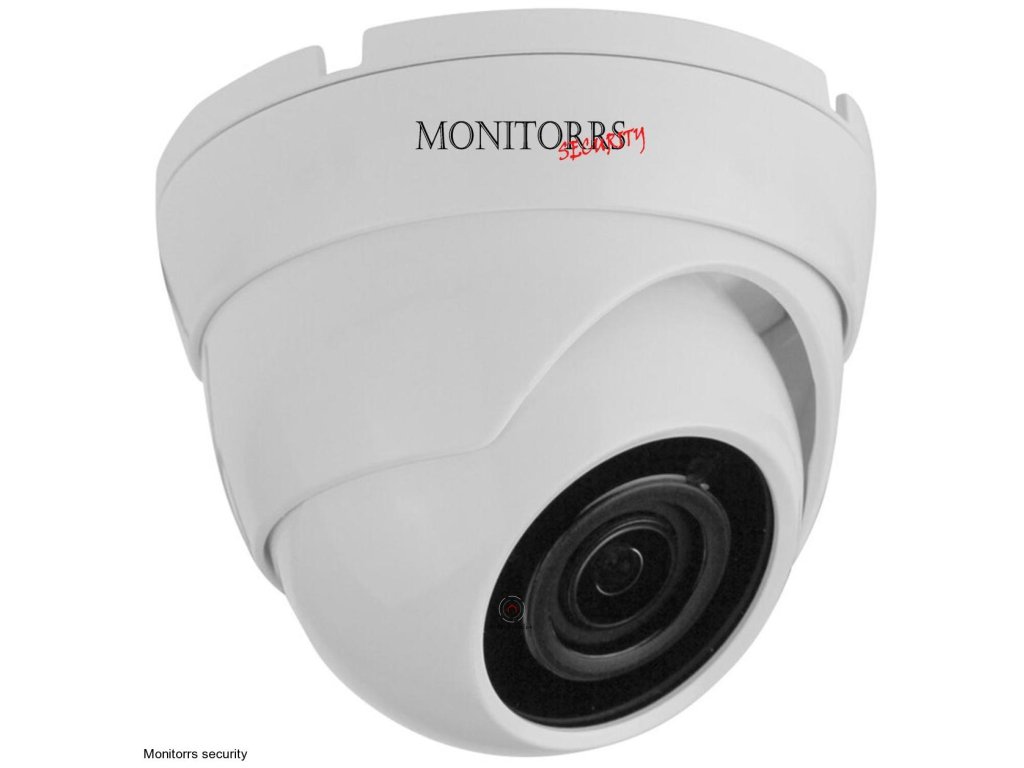

5MP Dome 4IN1 HD IR 25m
• 1/2.8"SONY Starvis Back-illuminated CMOS sensor • AHD/CVI/TVI/CVBS 4 IN 1 • 2,8mm Fixed Lens • IR Distance Max. 25m • IP66 Outdoor, OSD&UTC Support
|
Camera | ||
Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS sensor | |
Image Resolution | 8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080 | |
TV System | PAL/NTSC | |
Electronic Shutter | AUTO | |
Scanning System | Progressive Scan | |
Lens | ||
Focus Length | 2,8mm | |
Focus Control | Fixed | |
Lens Type | Fixed | |
Night Vision | ||
IR Cut Filter | YES | |
Infrared LED | 14µ x 18PCS | |
Infrared Distance | 25 M | |
IR Status | AGC Auto Control | |
Camera Features | ||
Starlight | / | |
Day/Night | YES | |
OSD Menu | YES | |
WDR | YES | |
UTC | YES | |
Noise Reduction | 3DNR | |
White Balance | AUTO / MANUAL | |
Gain Control | AUTO | |
General | ||
Housing | Metal, IP66 | |
Bracket | NO | |
Operation Temperature | -10℃ ~ +50℃ RH95% Max | |
Storage Temperature | -20℃ ~ +60℃ RH95% Max | |
Power Source | DC12V±10%, 550mA | |
Dimension | ¢93 x 74(H) mm | |
Weight | 400g |

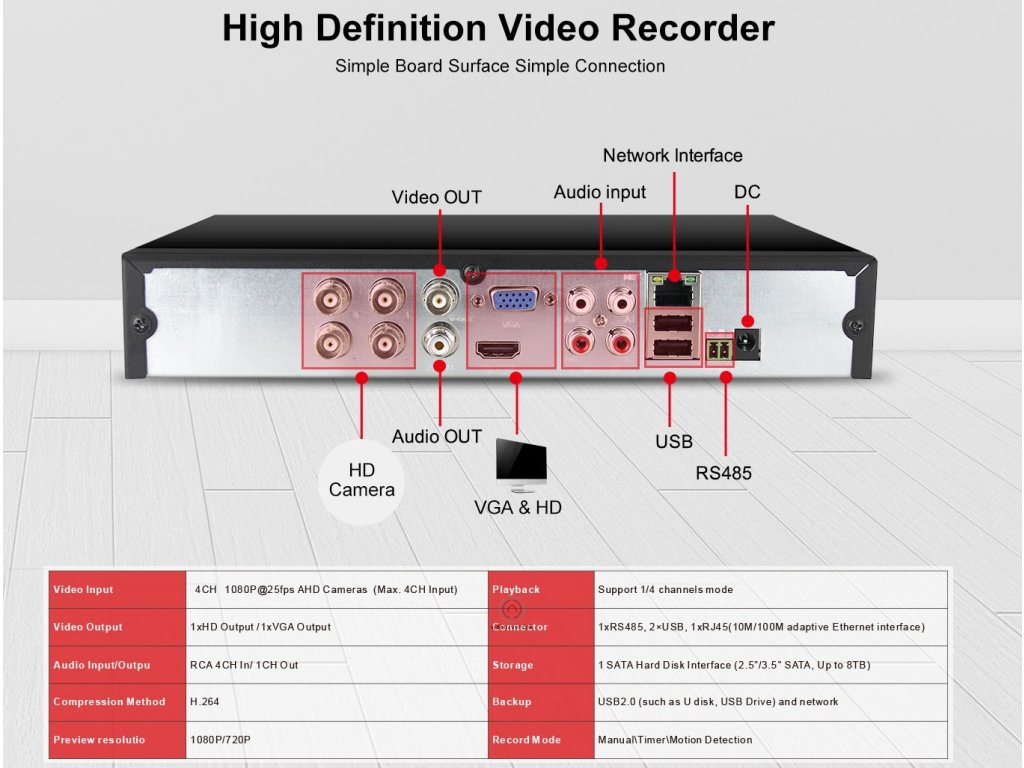

4CH H.265 5IN1 XVR 8MP
|
System | |
Main Processor | HI3521D |
Operating System | Embedded LINUX |
Video | |
Input |
Analog: 4*(AHD/TVI/CVI: 8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI: 3MP; AHD/TVI/CVI: 1080P/720P; Analog: 960H) |
Input | 4CH BNC |
Signal Type | Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network |
Output | 1 HD,1 VGA |
Audio | |
Input | 4Channel, RCA |
Two-way Audio | NO |
Output | 1 Channel, RCA |
Alarm | |
Sensor Input | NO |
Output | NO |
Motion Detection | 4 Channel(max 16 Channel in pure network mode) |
Trigger Events | Recording, Email, Screen tips, Buzzer, Push notifications(motion detection) |
Email Alarm | Send Image to The Designated E-mail |
PTZ | |
Interface | RS485 |
Protocol | Pelco-D, Pelco-P |
Baud Rate | 110~921600 |
Address | 0~255 |
Display | |
VGA |
Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
HD Output |
Resolution: 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz |
Display Split | 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel |
Privacy Masking | 3 Rectangular Zones (Each camera) |
OSD | Camera title, Time, Video loss, Alarm, Motion detection, Recording |
Recording | |
Video Compression | H.265/H.265+/H.264/H.264+ |
Audio Compression | G711u |
Resolution |
8MP(3840×2160), 5MP(2592×1944),4MP(2560×1440),3MP(2048×1536), 1080P(1920×1080),720P(1280×720),960H(P:960×576/N:960×480) |
Video Quality | worst/worse/ordinary/well/best |
Record Rate |
Analog: PAL:8MP(3840*2160 8*8fps), 5MP(2592×1944 4*12fps), 4MP(2560×1440 4*15fps),3MP(2048×1536 4*18fps);1080P(1920x1080 4*25fps), 720P(1280×720 4*25fps), 960H(960×576 4*25fps) 4MP(2560×1440 4*15fps),3MP(2048×1536 4*18fps),1080P(1920x1080 4*30fps), 720P(1280×720 4*30fps), 960H(960×480 4*30fps) 1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps 1080P@16x30fps, 960P@16x30fps, 720P@16x30fps, D1@16x30fps |
Record Mode | Manualimerotion Detection |
Playback & Backup | |
Decode Capability | 4CH 1080P@30fps |
Sync Playback |
Pure Analog: 4CH 8M@8fps, 4CH 5M@12fps, 4CH 4M@15fps, 4CH 3M@18fps, 4CH 1080p@30fps ,1CH 5MP@30fps, 1CH 4K@30fps 4CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps |
Remote Playback | 4 Channel / 1 Channel |
Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection |
Playback Functions | Play, Pause, Stop, Fast play, Rewind, Digital Zoom, Full screen |
Smart Phone Playback | 4 Channel |
Backup Mode | USB Device(with fomat FAT 32 )/Network/FTP |
Network | |
Interface | 1 RJ45 10M/100 Adaptive Ethernet Interface |
Network Functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP |
DDNS | Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE |
Web Browser | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53) |
CMS Software | Support Windows 7/ Windows 8/Windows 10 |
Extra Stream | D1/CIF(1~30fps) |
Smart Phone | iPhone, ipad, Android ,Android pad |
Hard Disk Driver | |
Interface Type | 1 SATA Interface |
Capacity | 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 6TB) |
General | |
Language |
Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa |
UTC Control | YES |
USB Interface | 2 USB 2.0 Interfaces |
Power consumption | DC 12V ≤6W (Without Hard Disk) |
Working Environment | -10~55℃/10~90% |
Dimension (W×D×H) | 260*215*43(mm) |
Weight | 2.0kg (Without HDD) |
Dodatočné parametre
Kategória: | KAMEROVÉ SYSTÉMY |
---|---|
Záruka: | 2 roky |
