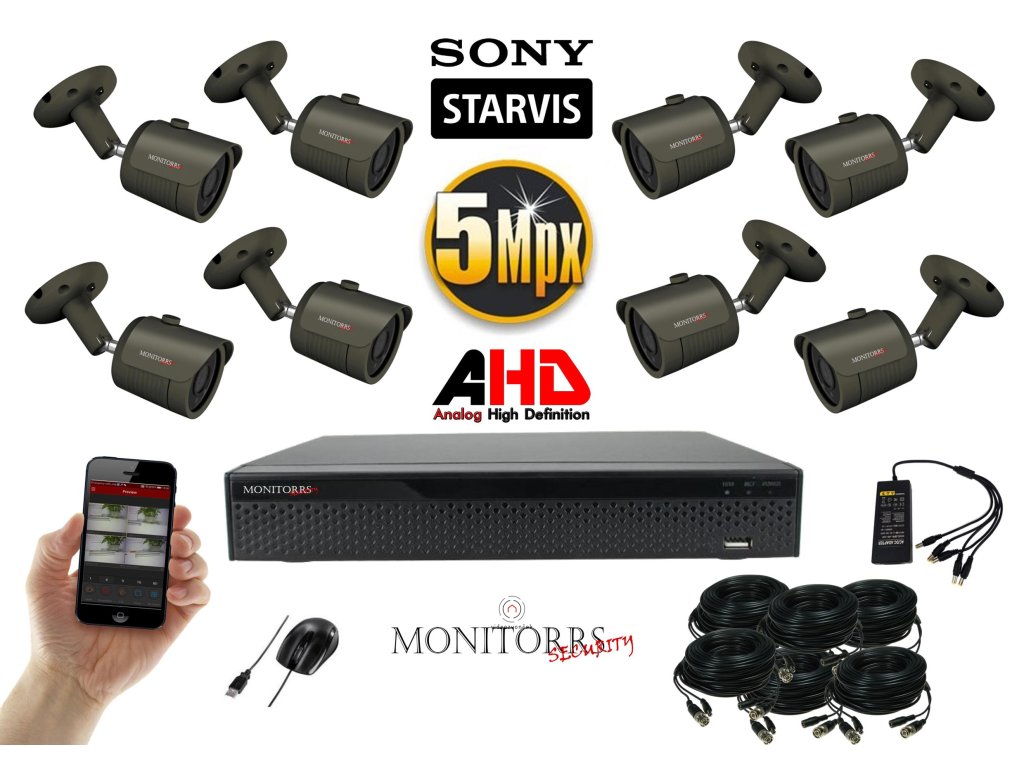

Monitorrs Security 5 MPix AHD kamerový set 8 kanálový
AHD kamerový set s 8 IR kamerami 5 MP s vysokým rozlíšením a nočným videním až do 25 m a 8-kanálovým zariadením DVR.
Bez pevného disku! (Veľkosť disku si môžete zmeniť vyššie).
- Kvalitný 8-kanálový AHD kamerový set s rozlíšením 5 Mpix,
- Kamery sú v kovovom, antivandal puzdre s nočným prísvitom až do 25 m,
- Záznamové zariadenie s procesorom HI3521D s Linuxovým operačným systémom,
- České menu,
- Video výstup: 1 x VGA, 1 x HDMI, CVBS,
- Režim nahrávania Auto, Manuál alebo nahrávanie pri detekcii pohybu,
- Možnosť sledovania na telefóne, tablete alebo na počítači z celého sveta bez potreby statickej IP adresy,
- 2,8 mm objektív s uhlom záberu 95°,
- 8 x kábel 18 m ( na požiadanie aj dlhší ),
- zapojenie zvládne aj laik.
Ostrejší a jasnejší obraz za každých okolností
Kamerové systémy značky Monitorrs security umožňujú online náhľad a prehrávanie pomocou aplikácií pre mobil, tablet aj PC bezplatne a bez nutnosti statickej IP adresy.
Kovové, vodotesné antivandal puzdro
.jpg)
 |
Obsah balení: 8 x BNC Kábel 18 m 1 x Disk podľa výberu |
Videonávod pre aplikáciu do mobilu a tabletu (video obsahuje titulky)
 |
5MP Dome 4IN1 HD IR 25m
• 1/2.8"SONY Starvis Back-illuminated CMOS sensor • AHD/CVI/TVI/CVBS 4 IN 1 • 2,8mm Fixed Lens • IR Distance Max. 25m • IP66 Outdoor, OSD&UTC Support
|
| Camera | ||
| Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS sensor | |
| Image Resolution | 8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080 | |
| TV System | PAL/NTSC | |
| Electronic Shutter | AUTO | |
| Scanning System | Progressive Scan | |
| Lens | ||
| Focus Length | 2,8mm | |
| Focus Control | Fixed | |
| Lens Type | Fixed | |
| Night Vision | ||
| IR Cut Filter | YES | |
| Infrared LED | 14µ x 18PCS | |
| Infrared Distance | 25 M | |
| IR Status | AGC Auto Control | |
| Camera Features | ||
| Starlight | / | |
| Day/Night | YES | |
| OSD Menu | YES | |
| WDR | YES | |
| UTC | YES | |
| Noise Reduction | 3DNR | |
| White Balance | AUTO / MANUAL | |
| Gain Control | AUTO | |
| General | ||
| Housing | Metal, IP66 | |
| Bracket | NO | |
| Operation Temperature | -10℃ ~ +50℃ RH95% Max | |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | |
| Power Source | DC12V±10%, 550mA | |
| Dimension | ￠93 x 74(H) mm | |
| Weight | 400g | |
 |
8CH H.265 5IN1 XVR 8MP
|
| System | |
| Main Processor | HI3531D |
| Operating System | Embedded LINUX |
| Video | |
| Input |
Analog: 8*(AHD/TVI/CVI: 8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI: 3MP; AHD/TVI/CVI: 1080P/720P; Analog: 960H) 4*Analog+12*network(Max 8MP), 6*Analog+10*network(Max 8MP) |
| Input | 8CH BNC |
| Signal Type | Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network |
| Output | 1 HD,1 VGA |
| Audio | |
| Input | 4Channel, RCA |
| Two-way Audio | NO |
| Output | 1 Channel, RCA |
| Alarm | |
| Sensor Input | NO |
| Output | NO |
| Motion Detection | 8 Channel(max 32 Channel in pure network mode) |
| Trigger Events | Recording, Email, Screen tips, Buzzer, Push notifications(motion detection) |
| Email Alarm | Send Image to The Designated E-mail |
| PTZ | |
| Interface | RS485 |
| Protocol | Pelco-D, Pelco-P |
| Baud Rate | 110~921600 |
| Address | 0~255 |
| Display | |
| VGA | Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz |
| HD Output |
Resolution: 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz |
| Display Split | 36 Channel/25 Channel/16 Channel/9 Channel/8 Channel/4 Channel / 1Channel |
| Privacy Masking | 3 Rectangular Zones (Each camera) |
| OSD | Camera title, Time, Video loss, Alarm, Motion detection, Recording |
| Recording | |
| Video Compression | H.265/H.265+/H.264/H.264+ |
| Audio Compression | G711u |
| Resolution |
8MP(3840×2160), 5MP(2592×1944),4MP(2560×1440), 3MP(2048×1536),1080P(1920×1080),720P(1280×720), 960H(P:960×576/N:960×480) |
| Video Quality | worst/worse/ordinary/well/best |
| Record Rate |
Analog:PAL:8MP(3840*2160 8*8fps), 5MP(2592×1944 8*12fps), 4MP(2560×1440 8*15fps),3MP(2048×1536 8*18fps), 1080P(1920x1080 8*25fps),720P(1280×720 8*25fps), 960H(960×576 8*25fps) 4MP(2560×1440 8*15fps),3MP(2048×1536 8*18fps),1080P(1920x1080 8*30fps), 720P(1280×720 8*30fps), 960H(960×480 8*30fps) 1080P@32×25fps,960P@32×25fps,720P@32×25fps,D1@32×25fps 1080P@32×30fps, 960P@32×30fps, 720P@32×30fps, D1@32×30fps |
| Record Mode | Manualimerotion Detection |
| Playback & Backup | |
| Decode Capability | 9CH 720P@30fps |
| Sync Playback |
Pure Analog: 8CH 8M@8fps, 8CH 5M@12fps,8CH 4M@15fps, 8CH 3M@18fps, 8CH 1080p@30fps 3CH 5MP@20fps, 2CH 4K@30fps 6CH 3M@30fps, 9CH 1080P@30fps, 9CH 960P@30fps, 9CH 720P@30fps |
| Remote Playback | 4 Channel / 1 Channel |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection |
| Playback Functions | Play, Pause, Stop, Fast play, Rewind, Digital Zoom, Full screen |
| Smart Phone Playback | 4 Channel |
| Backup Mode | USB Device(with fomat FAT 32 )/Network/FTP |
| Network | |
| Interface | 1 RJ45 10M/100/1000M Adaptive Ethernet Interface |
| Network Functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP |
| DDNS | Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES |
| Web Browser | Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE |
| CMS Software | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53) |
| Extra Stream | D1/CIF(1~30fps) |
| Smart Phone | iPhone, ipad, Android ,Android pad |
| Hard Disk Driver | |
| Interface Type | 1 SATA Interface |
| Capacity | 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB) |
| General | |
| Language |
Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa |
| UTC Control | YES |
| USB Interface | 2 USB 2.0 Interfaces |
| Power consumption | DC 12V ≤10W (Without Hard Disk) |
| Working Environment | -10~55℃/10~90% |
| Dimension (W×D×H) | 260*215*43(mm) |
| Weight | 2.0kg (Without HDD) |
| Kód | Kód: 4120 |
|---|---|
| Meno značky: | Monitorrs Security |
| Kategória: | KAMEROVÉ SYSTÉMY |
| Záruka: | 2 roky |
