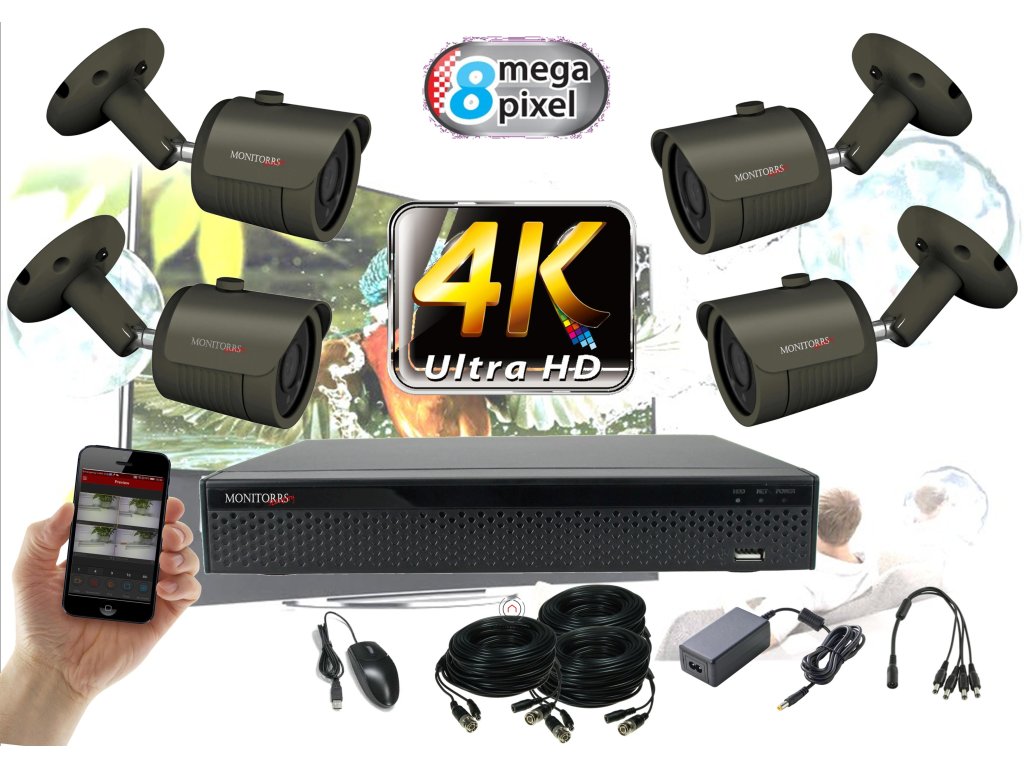

Monitorrs Security 4K AHD Kamerový set so 4 kamerami
AHD kamerový systém so 4 IR kamerami 8 MPix 4096 x 2160 s vysokým rozlíšením a nočným videním až do 40 m a so 4-kanálovým zariadením DVR.
Bez pevného disku! Disk si môžete vybrať vyššie.
Kamery sú v kovovom, antivandal puzdre s nočným prisvietením až do 40 m.
2,8 mm objektív s uhlom záberu 95 °,
Záznamové zariadenie s procesorom HI3531D s linuxovým operačným systémom,
české menu,
Video výstup: 1 x VGA, 1 x HDMI, CVBS,
Režim nahrávania Auto, Manuál alebo nahrávanie pri detekcii pohybu,
Možnosť sledovania na telefóne, tablete alebo na počítači z celého sveta bez nutnosti statickej IP adresy,
4 x kábel 18 m (na požiadanie aj dlhšie),
zapojenie zvládne aj laik.
Najmodernejšia technológia dostupná aj v AHD
Najmodernejší kamerový systém s veľmi vysokým rozlíšením, vďaka ktorému vám neujde ani najmenší detail.
Rekordér je vybavený unikátnou funkciou vzdialeného prístupu cez internet, vďaka ktorej sa k nemu môžete odkiaľkoľvek na svete pripojiť a prezerať si zhotovené záznamy či online prenos z pripojených kamier.
H.265
Kamerový systém využíva kódovanie H.265, vďaka ktorému sa zdvojnásobí využitie pevného disku.
Kamery sú v kovovom, vodotesnom (IP 66) antivandal puzdre s nočným prísvitom až do 40 m.
Pre naše sety nie je potrebná žiadna ďalšia investícia a zapojenie zvládne aj laik.
Obsah balenia: 4 x Kábel BNC 18 m |
8 MP 4IN1 HD Bullet IR 40 m
|
Camera | ||
Image Sensor | 1/1.8'' OmniVision CMOS sensor | |
Image Resolution | 8 MP | |
Effective Pixels | 8 M:3840*2160 | |
TV System | PAL/NTSC | |
Electronic Shutter | 1/25s~1/50,000s , 1/30s~1/60,000s | |
S/N Ratio | ≥50dB | |
Scanning System | Progressive Scan | |
Lens | ||
Focus Length | 4 mm | |
Focus Control | Fixed | |
Lens Type | Fixed | |
Pixels | 8 M Pixels | |
Auto Iris Support | NO | |
Night Vision | ||
Infrared LED | 42µ x 4PCS | |
Infrared Distance | 40 M | |
IR Status | Under 6 Lux by AGC(F2.0) | |
IR Power On | AGC Auto Control | |
Camera Features | ||
Starlight | / | |
Day/Night | YES | |
OSD Menu Language | YES | |
White Balance | AUTO / MANUAL | |
Gain Control | AUTO | |
Noise Reduction | 3DNR | |
Picture Adjustment | YES | |
WDR | YES | |
OSD Support | YES | |
UTC | YES | |
Dip Switch | / | |
General | ||
Housing | Metal, IP66 | |
Bracket | YES | |
Dual Voltage | NO | |
IR Cut Filter | YES | |
Heater | NO | |
Audio | / | |
Operation Temperature | -10℃ ~ +50℃ RH95% Max | |
Storage Temperature | -20℃ ~ +60℃ RH95% Max | |
Power Source | DC12V±10%, 600mA | |
Dimension | 157(W) x 70(H) x 66(D)mm | |
Weight | 650g |
4-CH H.265 5IN1 XVR 8-M
|
System | |
Main Processor | HI3531D |
Operating System | Embedded LINUX |
Video | |
Input |
Analog: 4*(TVI/AHD: 8 MP; TVI/AHD: 5 MP; AHD/TVI/CVI: 4 MP; AHD/TVI: 3 MP; AHD/TVI/CVI: 1080P/720P; Analog: 960H) |
Input | 4-CH BNC |
Signal Type | Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network |
Output | 1 HD,1 VGA |
Audio | |
Input | 4-Channel, RCA |
Two-way Audio | NO |
Output | 1-Channel, RCA |
Alarm | |
Sensor Input | NO |
Output | NO |
Motion Detection | 4-Channel(max 16-Channel in pure network mode) |
Trigger Events | Recording, Email, Screen tips, Buzzer, Push notifications(motion detection) |
Email Alarm | Send Image to The Designated E-mail |
PTZ | |
Interface | RS485 |
Protocol | Pelco-D, Pelco-P |
Baud Rate | 110~921600 |
Address | 0~255 |
Display | |
VGA | Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz |
HD Output |
Resolution: 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz |
Display Split | 36-Channel/25-Channel/16-Channel/9-Channel/8-Channel/4-Channel / 1-Channel |
Privacy Masking | 3 Rectangular Zones (Each camera) |
OSD | Camera title, Time, Video loss, Alarm, Motion detection, Recording |
Recording | |
Video Compression | H.265/H.265+/H.264/H.264+ |
Audio Compression | G711u |
Resolution |
8 MP (3840×2160), 5 MP (2592×1944),4 MP (2560×1440),3 MP (2048×1536), 1080 P (1920×1080), 720 P (1280×720), 960 H (P:960×576/N:960×480) |
Video Quality | worst/worse/ordinary/well/best |
Record Rate |
Analog: PAL: 4k(3840*2160 4*12fps),5 MP (2592×1944 4*20fps), 4 MP(2560×1440 4*25fps),3 MP (2048×1536 4*18fps); 1080 P (1920x1080 4*25fps), 720 P (1280×720 4*25fps), 960 H (960×576 4*25fps) 4 MP (2560×1440 4*30fps), 3 MP (2048×1536 4*18fps), 1080 P (1920x1080 4*30fps), 720 P (1280×720 4*30fps), 960 H (960×480 4*30fps) 1080P@32×25fps,960P@32×25fps,720P@32×25fps,D1@32×25fps 1080P@32×30fps, 960P@32×30fps, 720P@32×30fps, D1@32×30fps |
Record Mode | Manualimerotion Detection |
Playback & Backup | |
Decode Capability | 3CH 4K@30fps |
Sync Playback |
Pure Analog: 4CH 4K@12fps, 4CH 5M@20fps, 4CH 4M@30fps, 4CH 3M@18fps, 4CH 1080p@30fps 3-CH 5 MP@20fps, 2-CH 4K@30fps 9CH 1080P@30fps, 9CH 960P@30fps, 9CH 720P@30fps |
Remote Playback | 4 Channel / 1 Channel |
Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection |
Playback Functions | Play, Pause, Stop, Fast play, Rewind, Digital Zoom, Full screen |
Smart Phone Playback | 4 Channel |
Backup Mode | USB Device(with fomat FAT 32 )/Network |
Network | |
Interface | 1 RJ45 10M/100M/1000M Adaptive Ethernet Interface |
Network Functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP |
DDNS | Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES |
Web Browser | Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE |
CMS Software | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53) |
Extra Stream | D1/CIF(1~30fps) |
Smart Phone | iPhone, ipad, Android ,Android pad |
Hard Disk Driver | |
Interface Type | 2 SATA Interface |
Capacity | 2 SATA Hard Disk (2.5"/3.5" SATA, Up to 16TB) |
General | |
Language |
Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek |
UTC Control | YES |
USB Interface | 2 USB 2.0 Interfaces |
Power consumption | DC 12V ≤6W (Without Hard Disk) |
Working Environment | -10~55℃/10~90% |
Dimension (W×D×H) | 310*295*46(mm) |
Weight | 3.5 kg (Without HDD) |
Najmodernejšia technológia dostupná aj v AHD
|
|
H.265 Kamerový systém využíva kódovanie H.265, vďaka ktorému sa zdvojnásobí využitie pevného disku. |
|
Kamery sú v kovovom, vodotesnom (IP 66) antivandal puzdre s nočným prísvitom až do 40 m. |
|
Pre naše sety nie je potrebná žiadna ďalšia investícia a zapojenie zvládne aj laik. |
Obsah balenia: 4 x Kábel BNC 18 m |
8 MP 4IN1 HD Bullet IR 40 m
|
Camera | ||
Image Sensor | 1/1.8'' OmniVision CMOS sensor | |
Image Resolution | 8 MP | |
Effective Pixels | 8 M:3840*2160 | |
TV System | PAL/NTSC | |
Electronic Shutter | 1/25s~1/50,000s , 1/30s~1/60,000s | |
S/N Ratio | ≥50dB | |
Scanning System | Progressive Scan | |
Lens | ||
Focus Length | 4 mm | |
Focus Control | Fixed | |
Lens Type | Fixed | |
Pixels | 8 M Pixels | |
Auto Iris Support | NO | |
Night Vision | ||
Infrared LED | 42µ x 4PCS | |
Infrared Distance | 40 M | |
IR Status | Under 6 Lux by AGC(F2.0) | |
IR Power On | AGC Auto Control | |
Camera Features | ||
Starlight | / | |
Day/Night | YES | |
OSD Menu Language | YES | |
White Balance | AUTO / MANUAL | |
Gain Control | AUTO | |
Noise Reduction | 3DNR | |
Picture Adjustment | YES | |
WDR | YES | |
OSD Support | YES | |
UTC | YES | |
Dip Switch | / | |
General | ||
Housing | Metal, IP66 | |
Bracket | YES | |
Dual Voltage | NO | |
IR Cut Filter | YES | |
Heater | NO | |
Audio | / | |
Operation Temperature | -10℃ ~ +50℃ RH95% Max | |
Storage Temperature | -20℃ ~ +60℃ RH95% Max | |
Power Source | DC12V±10%, 600mA | |
Dimension | 157(W) x 70(H) x 66(D)mm | |
Weight | 650g |
4-CH H.265 5IN1 XVR 8-M
|
System | |
Main Processor | HI3531D |
Operating System | Embedded LINUX |
Video | |
Input |
Analog: 4*(TVI/AHD: 8 MP; TVI/AHD: 5 MP; AHD/TVI/CVI: 4 MP; AHD/TVI: 3 MP; AHD/TVI/CVI: 1080P/720P; Analog: 960H) |
Input | 4-CH BNC |
Signal Type | Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network |
Output | 1 HD,1 VGA |
Audio | |
Input | 4-Channel, RCA |
Two-way Audio | NO |
Output | 1-Channel, RCA |
Alarm | |
Sensor Input | NO |
Output | NO |
Motion Detection | 4-Channel(max 16-Channel in pure network mode) |
Trigger Events | Recording, Email, Screen tips, Buzzer, Push notifications(motion detection) |
Email Alarm | Send Image to The Designated E-mail |
PTZ | |
Interface | RS485 |
Protocol | Pelco-D, Pelco-P |
Baud Rate | 110~921600 |
Address | 0~255 |
Display | |
VGA | Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz |
HD Output |
Resolution: 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz |
Display Split | 36-Channel/25-Channel/16-Channel/9-Channel/8-Channel/4-Channel / 1-Channel |
Privacy Masking | 3 Rectangular Zones (Each camera) |
OSD | Camera title, Time, Video loss, Alarm, Motion detection, Recording |
Recording | |
Video Compression | H.265/H.265+/H.264/H.264+ |
Audio Compression | G711u |
Resolution |
8 MP (3840×2160), 5 MP (2592×1944),4 MP (2560×1440),3 MP (2048×1536), 1080 P (1920×1080), 720 P (1280×720), 960 H (P:960×576/N:960×480) |
Video Quality | worst/worse/ordinary/well/best |
Record Rate |
Analog: PAL: 4k(3840*2160 4*12fps),5 MP (2592×1944 4*20fps), 4 MP(2560×1440 4*25fps),3 MP (2048×1536 4*18fps); 1080 P (1920x1080 4*25fps), 720 P (1280×720 4*25fps), 960 H (960×576 4*25fps) 4 MP (2560×1440 4*30fps), 3 MP (2048×1536 4*18fps), 1080 P (1920x1080 4*30fps), 720 P (1280×720 4*30fps), 960 H (960×480 4*30fps) 1080P@32×25fps,960P@32×25fps,720P@32×25fps,D1@32×25fps 1080P@32×30fps, 960P@32×30fps, 720P@32×30fps, D1@32×30fps |
Record Mode | Manualimerotion Detection |
Playback & Backup | |
Decode Capability | 3CH 4K@30fps |
Sync Playback |
Pure Analog: 4CH 4K@12fps, 4CH 5M@20fps, 4CH 4M@30fps, 4CH 3M@18fps, 4CH 1080p@30fps 3-CH 5 MP@20fps, 2-CH 4K@30fps 9CH 1080P@30fps, 9CH 960P@30fps, 9CH 720P@30fps |
Remote Playback | 4 Channel / 1 Channel |
Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection |
Playback Functions | Play, Pause, Stop, Fast play, Rewind, Digital Zoom, Full screen |
Smart Phone Playback | 4 Channel |
Backup Mode | USB Device(with fomat FAT 32 )/Network |
Network | |
Interface | 1 RJ45 10M/100M/1000M Adaptive Ethernet Interface |
Network Functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP |
DDNS | Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES |
Web Browser | Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE |
CMS Software | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53) |
Extra Stream | D1/CIF(1~30fps) |
Smart Phone | iPhone, ipad, Android ,Android pad |
Hard Disk Driver | |
Interface Type | 2 SATA Interface |
Capacity | 2 SATA Hard Disk (2.5"/3.5" SATA, Up to 16TB) |
General | |
Language |
Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek |
UTC Control | YES |
USB Interface | 2 USB 2.0 Interfaces |
Power consumption | DC 12V ≤6W (Without Hard Disk) |
Working Environment | -10~55℃/10~90% |
Dimension (W×D×H) | 310*295*46(mm) |
Weight | 3.5 kg (Without HDD) |
Kód | Kód: 4117 |
---|---|
Meno značky: | Monitorrs Security |
Kategória: | KAMEROVÉ SYSTÉMY |
Záruka: | 2 roky |
