Bullet Monitor 5 MPix AHD kamerový set dome 4 kanálový
Kód: 3468Súvisiaci tovar
Podrobný popis
AHD kamerový set so štyrmi IR kamery 5 MP s vysokým rozlíšením a nočným videním až do 30m a 4-kanálový DVR.
Bez pevného disku! (Veľkosť disku si môžete zmeniť vyššie)
- Kvalitný 4 kanálový AHD kamerový set s rozlíšenie 5 Mpix
- Kamery sú v kovovom, antivandal puzdre s nočným prísvitom až do 30 m
- Záznamové zariadenie s procesorom ARM Cortex A9 s Linuxovým operačným systémom.
- České menu
- Video výstup: 1xVGA, 1 x HDMI, CVBS
- 4 x kábel 18 m ( na požiadanie aj dlhší )
- Režim nahrávania Auto, Manuál alebo nahrávanie pri registrácií pohybu

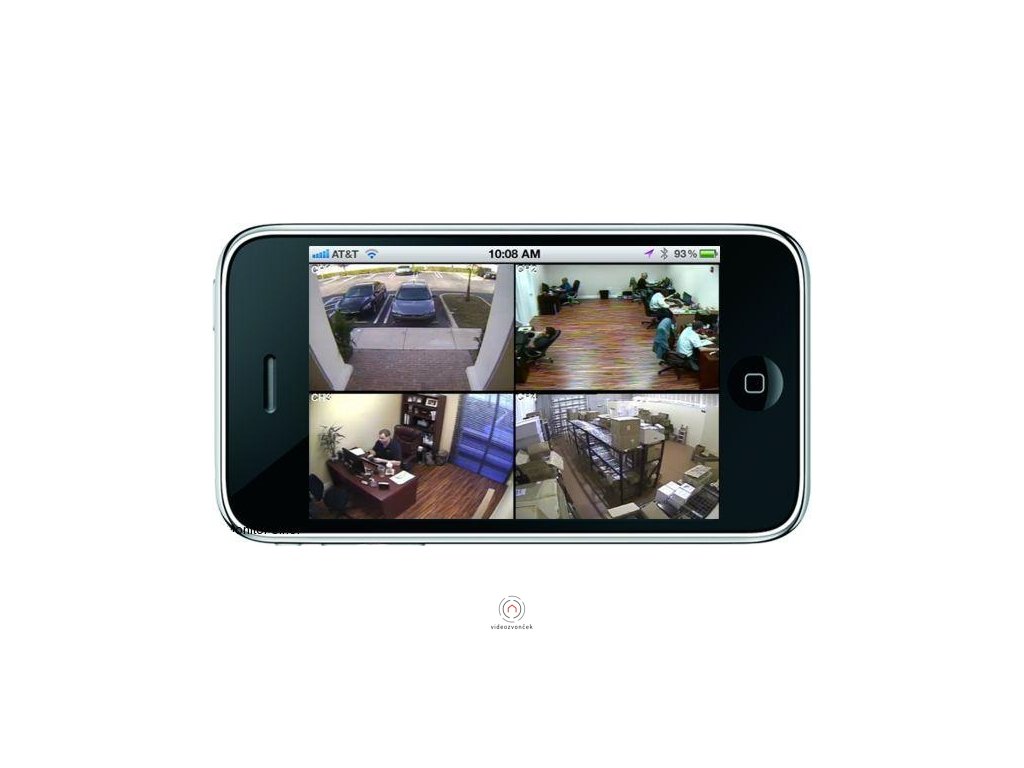

- Možnosť sledovania na telefóne, tablete alebo počítača s celého sveta.
- Funkcia zasielania fotiek na email.
- Pre naše sety nie je potrebná žiadna ďalšia investícia a zapojenie zvládne aj laik
Set neobsahuje HDD pre ukladanie záznamu. HDD si môžete zvoliť nižšie v Súvisiacom tovare
Videonávod pre aplikáciu do mobilu a tabletu (video obsahuje titulky)
 |
5MP Bullet 4IN1 HD IR 30m
|
Parametre kamery:
| mage Sensor | 1/2.9" SONY 6MP CMOS sensor | |
| Image Resolution | 5MP / 960H | |
| Effective Pixels | 2592*1944 | |
| TV System | PAL/NTSC | |
| Electronic Shutter | 1/25s~1/50,000s , 1/30s~1/60,000s | |
| S/N Ratio | ≥50dB | |
| Scanning System | Progressive Scan | |
| Lens | ||
| Focus Length | 3.6mm | |
| Focus Control | Fixed | |
| Lens Type | Fixed | |
| Pixels | 5M Pixels | |
| Auto Iris Support | NO | |
| Night Vision | ||
| Infrared LED | 42µ x 2PCS | |
| Infrared Distance | 30M | |
| IR Status | Under 10 Lux by CDS | |
| IR Power On | CDS Auto Control | |
| Camera Features | ||
| Starlight | / | |
| Day/Night | YES | |
| OSD Menu Language | YES | |
| White Balance | AUTO / MANUAL | |
| Gain Control | AUTO | |
| Noise Reduction | DNR | |
| Picture Adjustment | YES | |
| WDR | YES | |
| OSD Support | YES | |
| UTC | YES | |
| Dip Switch | / | |
| General | ||
| Housing | Metal, IP66 | |
| Bracket | YES | |
| Dual Voltage | NO | |
| IR Cut Filter | YES | |
| Heater | NO | |
| Audio | / | |
| Operation Temperature | -10℃ ~ +50℃ RH95% Max | |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | |
| Power Source | DC12V±10%, 600mA | |
| Dimension | 157(W) x 70(H) x 66(D)mm | |
| Weight | 650g | |
Parametre XVR rekordéra:
 |
8CH H.264 5IN1 XVR 1080P
|
| Main Processor | HI3531A |
| Operating System | Embedded LINUX |
| Video | |
| Input |
Analog: 8*(TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)
4*Analog+12*network(Max 8MP), 2*Analog+14*network(Max 8MP) |
| Input | 8CH BNC |
| Signal Type | Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network |
| Output | 1 HDMI,1 VGA, 1CVBS |
| Audio | |
| Input | 4Channel, RCA |
| Two-way Audio | NO |
| Output | 1 Channel, RCA |
| Alarm | |
| Sensor Input | NO |
| Output | NO |
| Motion Detection | 8 Channel(max 32 Channel in pure network mode) |
| Trigger Events | Recording, Alarm, Email, Screen tips, Buzzer |
| Email Alarm | Send Image to The Designated E-mail |
| PTZ | |
| Interface | RS485 |
| Protocol | Pelco-D, Pelco-P |
| Baud Rate | 110~921600 |
| Address | 0~255 |
| Display | |
| VGA |
Resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz |
| HDMI |
Resolution: 3840×2160/30Hz, 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz |
| Display Split | 36 Channel/25 Channel/16 Channel/9 Channel/8 Channel/4 Channel / 1Channel |
| Privacy Masking | 1 Rectangular Zones (Each camera) |
| OSD | Camera title, Time, Video loss, Alarm, Motion detection, Recording |
| Recording | |
| Video Compression | H.264 |
| Audio Compression | G711u |
| Resolution |
5MP(2592×1944),5MP_HALF(1296×1944),4MP(2560×1440),4MP_HALF(1280×1440), 3MP(2048×1536),1080P(1920×1080),720P(1280×720),960H(P:960×576/N:960×480) |
| Video Quality | worst/worse/ordinary/well/best |
| Record Rate |
Analog:PAL:5MP(2592×1944 8*12fps),5MP_HALF(1296×1944 8*20fps), 4MP(2560×1440 8*15fps),4MP_HALF(1280×1440 8*25fps), 3MP(2048×1536 8*18fps),1080P(1920x1080 8*25fps),720P(1280×720 8*25fps) 960H(960×576 8*25fps) 4MP(2560×1440 8*15fps),4MP_HALF(1280×1440 8*30fps), 3MP(2048×1536 8*18fps),1080P(1920x1080 8*30fps),720P(1280×720 8*30fps) 960H(960×480 8*30fps) 1080P@32×25fp,960P@32×25fp,720P@32×25fp,D1@32×25fp 1080P@32×30fp, 960P@32×30fp, 720P@32×30fp, D1@32×30fp |
| Record Mode | Manualimerotion Detection |
| Playback & Backup | |
| Decode Capability | 4CH 5M@30fps |
| Sync Playback |
Pure Analog: 8CH 5M@12fps,8CH 4M@15fps, 8CH 3M@18fps, 8CH 1080p@30fps 3CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps 4CH 960P@30fps, 4CH 720P@30fps 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps |
| Remote Playback | 4 Channel / 1 Channel |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection |
| Playback Functions | Play, Pause, Stop, Fast play, Rewind |
| Smart Phone Playback | 4 Channel |
| Backup Mode | USB Device/Network |
| Network | |
| Interface | 1 RJ45 10M/100/1000M Adaptive Ethernet Interface |
| Network Functions | HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS, NTP, FTP, UPNP |
| DDNS | Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES |
| Web Browser | IE8-11, Google Chrome (IE Tab), Firefox (IE Tab) |
| CMS Software | Support Windows 7/ Windows 8/Windows 10 |
| Extra Stream | CIF(1~25fps) |
| Smart Phone | iPhone, ipad, Android ,Android pad |
| Hard Disk Driver | |
| Interface Type | 2 SATA Interface |
| Capacity | 2.5"/3.5" SATA, Up to 12TB |
| General | |
| Language |
Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa Dutch, Greek |
| UTC Control | YES |
| USB Interface | 2 USB 2.0 Interfaces |
| Power consumption | DC 12V ≤10W (Without Hard Disk) |
| Working Environment | -10~55℃/10~90% |
| Dimension (W×D×H) | 310*295*46(mm) |
| Weight | 3.5kg (Without HDD) |
Dodatočné parametre
| Kategória: | KAMEROVÉ SYSTÉMY |
|---|---|
| Záruka: | 2 roky |
